Overview of Trading Charge Invoices and Backing Sheets V4.0

Effective From Date:
Status:LIVE
Other versions
Download

Overview of Trading Charge Invoices AND BACKING SHEETS

Guidance Note

This document covers:

    • What Invoices and Backing Sheets are;

    • When and how they will be delivered; and

    • Guidance on how they should be read.

What are Invoices and Backing Sheets?

Invoices and backing sheets are sent to you by the Funds Administration Agent (FAA).

    • An Invoice details the amount for Trading Charges, Default Charges and/or ad-hoc charges that you accrued since your last Invoice. It details the date you must pay these charges by (the Payment Date) and is your Tax Invoice.

    • Backing Sheets provide a breakdown of your Trading Charges, Default Charges and/or ad-hoc charges where such charges exist for the associated Invoice.

How are these documents delivered?

    • Invoices – You will receive by e-mail

    • Backing Sheets will be available to download from the Elexon Portal once an Invoice is issued.

.

When do I receive my Invoice?

The FAA will only send you an Invoice:

        • When the sum of your Trading Charges, Default Charges and/or ad-hoc charges exceeds the Invoice Threshold Limit;

        • On a Quarter Date; or

        • Under certain exceptional circumstances, such as if your Party is withdrawing from the BSC, is a Defaulting Party or has changed its VAT status.

The Invoice Threshold Limit is set at £500. The BSC Panel will occasionally review this. The FAA will send you an Invoice when you accumulate an amount that you owe or are owed which exceeds, or is equal to, this Threshold Limit. Therefore, the frequency that you receive Invoices will depend on your business.

Quarter Dates refer to the quarterly VAT period end dates at the end of March, June, September and December. The FAA will issue you with an Invoice for each Quarter Date, regardless of the monetary Invoice Threshold Limit or whether an Invoice was previously triggered within the quarter. If the last day of the quarter falls on a non working day, your Invoice will be issued to you on the last working day of the quarter.

When do I receive my Backing Sheets?

    • Backing sheets will only be issued when there is a threshold breach or quarter dates, along with the associated Invoice.

    • They will specify the related Invoice Number

    • A Trading Charges backing sheet will be produced for each calendar day, but these will only be available for download once the Invoice has been issued

Format of Invoices and Backing Sheets

Invoices are in PDF.

Backing Sheets are available in PDF and CSV Format on the Elexon Portal.

The Trading Charge backing sheets are delivered in unencrypted ASCII pipe delimited format.(.DAT) This format is meant for loading into applications such as MS Excel (or your own system) rather than direct interpretation.

Process Overview

An Invoice is issued by the FAA showing the amount you need to pay to the BSC Clearer, or that the BSC Clearer needs to pay you. It can cover charges for several calendar payment dates and must be paid in full by the Payment Date on the Invoice.

The Invoice acts as your tax invoice. The Customer is liable for VAT under the reverse charge mechanism.

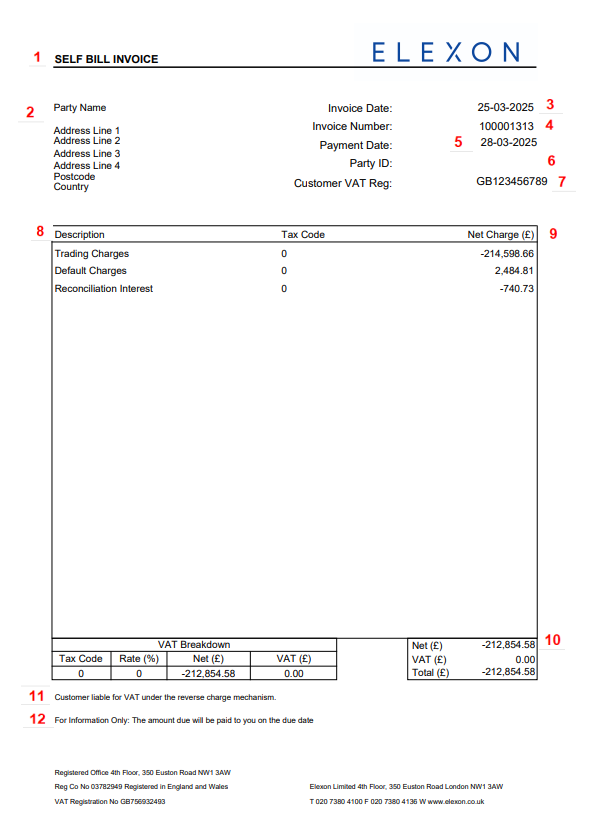

How do I read my Invoice ?

Please note this image is an example only and the billable values on the invoice will vary according to your charges applied. Please see point 8 in ‘The invoice explained’

complex image of process

The Invoice explained

1. The Invoice will show as either an Invoice or a Self -Bill Invoice

    • Invoice – The amount is to be paid by you on the due date

    • Self-Bill Invoice- The amount is due and will be paid to you on the due date.

2. Party Details – Your details and Trading Charges Address as submitted in BSCP301

If these are incorrect or need to be amended then please notify the FAA by completing the BSCP301 on-line form for Trading Charges Account details via self-serve in the Elexon Kinnect Customer Solution.

3. Invoice Date – Date of Issue

4. Invoice Number -This is a unique number and will be shown on associated backing sheets where charges are applied as Related Invoice Number .

5. Payment Date – the date on which the total amount specified on the Invoice is due.

6. Your Party ID

7. Your VAT number if applicable. If these are incorrect or need to be amended then please notify the FAA by completing the BSCP301 on-line form for Trading Charges Account details via self-serve in the Elexon Kinnect Customer Solution

8. Description- Type of Charges are shown here where a monetary value is applied and could be any of the following:

    • Trading Charges

    • Reconciliation Interest

    • Default Charges

    • Ad-hoc Charges

    • Late payment Interest if accrued.

9. Net Charge. This is the net amount for each type of Charge.

10. Total amount payable or receivable dependant on Invoice type.

11. Text referring to Customer is liable for VAT under the reverse charge mechanism.

    • Invoice Customer is referring to the Party

    • Self- Bill Invoice Customer is referring to Elexon

12. Payment Information- text is applied dependant on type of Invoice and/or payment method

    • Self- Bill Invoice – For Information Only. The amount due will be paid to you on the due date

    • If Invoice and Non-DD Payer – Please use our bank account 30547166, Elexon Clear Limited, 20-00.00 Barclays Bank Plc

    • If Invoice and DD Payer – The amount due will be collected by Direct Debit on or immediately after the due date

How do I read my Backing Sheets?

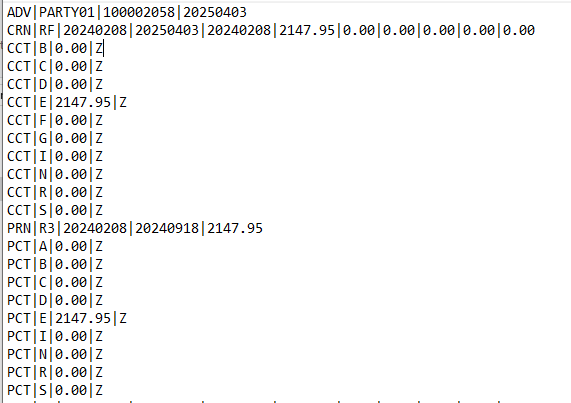

Here is an extract from an example backing sheet:

complex image of process

The next few sub-sections examine each ‘data group’ on the backing sheet. Further details about each of the fields (characterised by 1M, 2M, 3M… etc) in these lines are also provided.

First Data Group

The first data group is the Advice Note Header (ADV) row. There is one of these rows per file.

ADV|PARTY01|100002058|20250403

1M

2M

3M

4M

ADV

PARTY001

100002058

20250403

ADV – Advice Note Header (1)

Field

Field Name

Field type/ max size

Comment/description

1 M

Record Type

Char (3)

= ADV

2 M

BSC Party ID

Char (8)

BSC Party Identifier

3 M

Invoice Number

Number (10)

Invoice Number

4 M

Payment Date

Date

YYYYMMDD format

Known to the BSC Party as “Calendar Payment Date

Second Data Group

The second data group comprises the Current Run (CRN) row and the Current Charge Type (CCT) sub-rows. You have one CRN row in your file for each Settlement Run Type. The CCT rows detail what the charge types were for the Settlement Run.

Settlement Run Type

CRN|RF|20240208|20250403|20240208|2147.95|0.00|0.00|0.00|0.00|0.00

1M

2M

3M

4M

5M

6M

7M

8M

9M

10M

11M

CRN

RF

20240208

20250403

20240208

2147.95

0.00

0.00

0.00

0.00

0.00

CRN – Current Run (1-*)

Field

Field Name

Field type/ max size

Comment/description

1 M

Record Type

Char (3)

= CRN

2 M

Settlement Code

Char (2)

SF, R1, R2, R3 or RF

3 M

Settlement Date

Date

YYYYMMDD format

4 M

Payment Date

Date

YYYYMMDD format

Known to the BSC Party as “Calendar Payment Date

5 M

Initial Payment Date

Date

YYYYMMDD format

6 M

Total

Number (12,2)

Total for current run

7 M

Difference

Number (12,2)

Difference between current run and previous run

8 M

Interest

Number (12,2)

Interest on Difference

9 M

VAT

Number (12,2)

VAT on Difference

10 M

Tax

Number (12,2)

Income Tax on Interest

11 M

Amount

Number (12,2)

= Difference + Interest + VAT - Tax

Current Run by Charge Type

CCT|B|0.00|Z

1M

2M

3M

4M

CCT

B

0.00

Z

CCT – Current Run by Charge Type (1-*)

Field

Field Name

Field type/ max size

Comment/description

1 M

Record Type

Char (3)

= CCT

2 M

Charge Type Code

Char (1)

B,C,D,E, F,G,I, N, R or S

3 M

Amount

Number (12,2)

4 M

VAT Code

Char (1)

e.g. S, Z, E

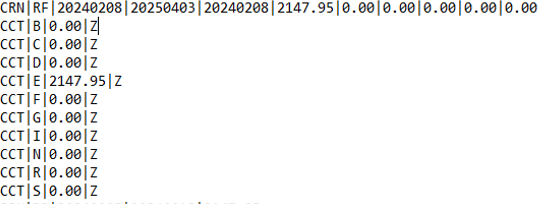

Example:

complex image of process

The total of the third column will add up to the figure in your Settlement Run Type row ( the CRN row)

Third Data Group

The third data group comprises the Previous Run (PRN) row and Previous Charge Type (PCT) sub group. The PRN row provides details of the previous run type, and the PCT row the charge types for the previous run.

Previous Run Type PRN|R3|20240208|20240918|2147.95

1M

2M

3M

4M

5M

PRN

R3

20240208

20240918

2147.95

PRN – Previous Run (0-*)

Field

Field Name

Field type/ max size

Comment/description

1 M

Record Type

Char (3)

= PRN

2 M

Settlement Code

Char (2)

SF, R1, R2, R3 or RF

3 M

Settlement Date

Date

YYYYMMDD format

4 M

Payment Date

Date

YYYYMMDD format

Known to the BSC Party as “Calendar Payment Date

5 M

Total

Number (12,2)

Previous Run by Charge Type

PCT|B|0.00|Z

1M

2M

3M

4M

PCT

B

0.00

Z

PCT – Previous Run by Charge Type (0-*)

Field

Field Name

Field type/ max size

Comment/description

1 M

Record Type

Char (3)

= PCT

2 M

Charge Type Code

Char (1)

B,C,D,E, F,G,I, N, R or S

3 M

Amount

Number (12,2)

4 M

VAT Code

Char (1)

e.g. S, Z, E

Example

Fourth Data Group

The fourth data group comprises the Interest Header (IHD) row and the Interest Detail (IDT) sub group. The IHD row relates to your interest and the IDT rows give a breakdown of that interest.

The Interest Row

IHD|DF|20060628|0.00

1M

2M

3M

4M

IHD

DF

20060628

0.00

IHD – Interest Header (0-*)

Field

Field Name

Field type/ max size

Comment/description

1 M

Record Type

Char (3)

= IHD

2 M

Settlement Code

Char (2)

SF, R1, R2, R3 or RF

3 M

Settlement Date

Date

YYYYMMDD format

4 M

Total Interest

Number (12,2)

The Interest Detail Rows

IDT|20060726|20060803|9|0.01|4.5000|0.00|0.01

1M

2M

3M

4M

5M

6M

7M

8M

IDT

20060726

20060803

9

0.01

4.5000

0.00

0.01

IDT – Interest Detail (0-*)

Field

Field Name

Field type/ max size

Comment/description

1 M

Record Type

Char (3)

= IDT

2 M

Start Date

Date

YYYYMMDD format

3 M

End Date

Date

YYYYMMDD format

4 M

Number of Days

Number (3)

Number of days for which interest date applies

5 M

Principal

Number (12,4)

Principal Amount on which interest is calculated

6 M

Interest Rate

Number (8,2)

Interest rate used in calculation

7 M

Interest Amount

Number (12,4)

Interest amount for the period

8 M

Total Including Interest

Number (12,4)

Principal + Interest Amount

Need more information?

If you require further information or have any queries on your Invoice or Backing Sheets please contact Elexon Support
